The phrase “ecological architecture” has become one of the most overused and least examined terms in contemporary practice. Applied to anything from a roof garden on a speculative tower to passive house retrofits in suburban contexts, it has lost much of its analytical precision. What the term should describe (and what the most rigorous design research of the past two decades has been working toward) is a mode of practice that treats ecological relationships not as an add-on layer but as a generative structural principle.

This article examines that evolution: how design collectives operating at the intersection of research and built practice have reframed the challenge of ecological architecture, specifically within the demands of high urban density.

From Envelope to System

Early sustainable design discourse was preoccupied with the building envelope. The shift toward double-skin facades, green roofs, and high-performance glazing represented a meaningful technical advance, but it also contained a conceptual limitation: it treated the building as an isolated thermal object rather than a node in a larger system of energy, materials, and social life.

A more consequential shift occurred when practitioners began working from relational premises, beginning the design process by mapping the reciprocal relationships between context, form, organization, and structure before committing to any particular formal outcome. This approach, developed through competition entries, exhibitions, and speculative research projects across Scandinavian and Asian urban contexts, challenged the assumption that ecological performance could be optimized independently of social program or structural logic.

The result was a body of work that positioned ecological architecture not as a category of building type but as a method of inquiry. Projects developed through this lens tend to exhibit a particular characteristic: every design variable is treated as dependent on every other. Material choice affects structural depth, which affects floor plate geometry, which affects natural light distribution, which affects the thermal performance of the envelope. No single decision is taken in isolation.

Bottom-Up Principles and Collective Intelligence

One of the more durable contributions of design research collectives to ecological architecture has been the articulation of bottom-up organizational principles. The term borrows from complexity theory and urban morphology: rather than imposing a top-down formal concept onto a site, the design emerges from the aggregation of local conditions, user behaviors, and material logics.

This approach has significant implications for density. High-density urban environments are typically planned through master-plan frameworks that prioritize legibility and infrastructural efficiency over adaptive response. The bottom-up alternative proposes that density itself can be an ecological resource: the concentration of people, programs, and energy flows in close proximity creates opportunities for exchange that dispersed development cannot. Shared thermal mass, cascading energy systems, and mixed-use programming that reduces transportation demand are all density effects that reward systemic thinking.

Research collectives operating across multiple geographic contexts (from Scandinavian timber-rich landscapes to seismically active East Asian urban cores) have used competition entries and speculative studies to demonstrate that these principles can be applied across a wide range of structural typologies and climatic conditions. The recurring finding is that ecological performance improves when it is embedded in the brief as a generative constraint rather than applied as a compliance checklist.

Timber as Structural Protagonist

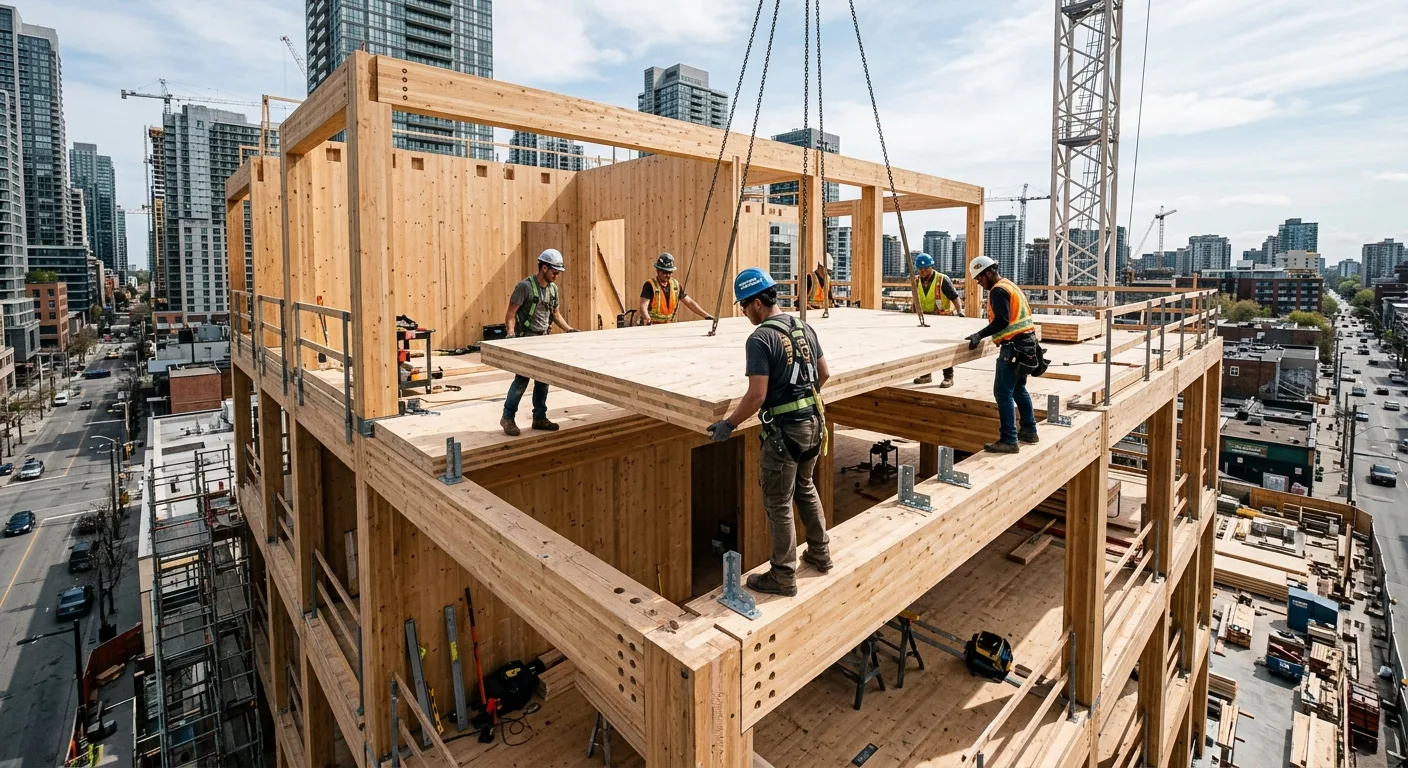

No material has done more to advance the agenda of ecological architecture in dense urban contexts than engineered mass timber. Cross-laminated timber (CLT) and laminated veneer lumber (LVL) have transformed the structural calculus of mid-rise and tall construction, offering carbon sequestration in lieu of the emissions-intensive concrete and steel that have dominated urban construction for a century.

The implications extend beyond carbon accounting. Mass timber buildings are substantially lighter than their concrete equivalents (typically around one quarter of the weight for equivalent structural performance), which reduces foundation requirements and enables construction on sites that could not support conventional high-rise loads. The material’s dimensional stability and prefabrication compatibility also align with the kind of precision-engineered, component-based construction that research-driven practices have consistently advocated.

Projects such as the Gustavsberg Timber Tower, developed through iterative structural and environmental modeling, represent an attempt to push this material system to its logical conclusion in the Scandinavian urban context: a tall, mixed-use structure in which timber is not merely a cladding choice but the primary structural organism of the building. The tower’s design integrates the compressive and lateral load-bearing functions of timber with the acoustic and thermal performance requirements of residential and commercial occupation.

The broader development trajectory supports this direction. Stockholm Wood City, a 62-acre mixed-use district under construction in the Sickla neighbourhood, is projected to deliver 7,000 offices and 2,000 homes using CLT as the dominant structural system, establishing a precedent for timber urbanism at a scale that goes well beyond individual building typologies.

The Carbon Argument in Dense Urban Form

The environmental case for timber in dense urban contexts rests on two distinct mechanisms. The first is avoided emissions: engineered timber production generates significantly fewer greenhouse gas emissions than concrete or structural steel, and the manufacturing process requires less embodied energy. The second is active sequestration: the carbon fixed in the wood during the tree’s growth cycle remains locked in the building material for the structure’s operational life, effectively removing it from the atmospheric carbon cycle.

These mechanisms are amplified in high-density contexts. A timber tower in a dense urban area delivers the carbon benefits of the material while simultaneously reducing the urban sprawl that drives transportation emissions and destroys the carbon-sequestering capacity of forest and agricultural land on city peripheries. Density, understood properly, is an ecological multiplier.

Research into this relationship has also examined the lifecycle implications of timber at end-of-use: the potential for structural components to be disassembled, reused, or recycled into secondary products. Design for disassembly is a logical extension of the systemic ecological thinking that motivates the broader research agenda, and it is beginning to influence how connection details and structural hierarchies are conceived from the outset of the design process.

Social Ecology and the Research Mandate

What distinguishes architectural research collectives from conventional practice in this domain is the insistence that ecological architecture cannot be separated from social ecology. Buildings shape the conditions of social life as much as they respond to environmental parameters. A genuinely ecological architecture must address both simultaneously.

This means that the research agenda extends to questions of program mix, spatial organization, and the design of shared and transitional spaces that foster exchange between different user groups. It means interrogating the social implications of material choices: who benefits from reduced construction costs, who bears the risk of experimental structural systems, how maintenance responsibilities are distributed across the life of a building.

The bottom-up design philosophy that has characterized the most rigorous work in this field is ultimately a social philosophy as well as a structural one. It insists that the conditions of human habitation are as much a part of the ecological equation as energy flows or material quantities. Architecture that loses sight of this connection produces buildings that may perform well on environmental metrics but fail to generate the social vitality that makes urban density genuinely sustainable.

Conclusion

The evolution of ecological architecture toward a systemic, relational practice has been driven by precisely the kind of work that design research collectives are positioned to produce: speculative projects that operate beyond the constraints of immediate commission, iterative studies that test formal and structural hypotheses across multiple contexts, and competition entries that introduce new performance criteria into the mainstream design conversation.

The agenda is far from complete. Structural timber systems continue to evolve, computational tools for environmental analysis are becoming more integrated with early-stage design thinking, and the social dimensions of ecological practice remain undertheorized. But the direction is clear, and the body of research that has accumulated over the past two decades provides a substantial foundation for the next generation of built work.

For most of the twentieth century, the structural calculation for construction in seismically active zones arrived at the same answer: reinforced concrete, or steel, or some combination of the two. These materials offered predictable performance under lateral load, an established code framework, and a long record of tested behavior in major seismic events. Timber, associated in engineering memory with older, lighter construction types, was not part of the serious conversation for tall buildings in earthquake zones.

That assumption has been systematically challenged over the past decade, through a convergence of material science advances, large-scale structural testing, and design research that has treated seismic resilience and ecological performance not as competing objectives but as co-generative design constraints.

The Structural Logic of Timber Under Seismic Load

The case for mass timber in seismic contexts begins with a counterintuitive material property: weight. Seismic forces acting on a structure are proportional to its mass. A mass timber building is approximately one quarter the weight of a structurally equivalent concrete building, which means the absolute magnitude of seismic forces transmitted through the structure is substantially reduced. This mass advantage translates directly into smaller foundation requirements, reduced demand on lateral load-resisting systems, and a more favorable structural response during ground motion events.

Cross-laminated timber panels (produced by bonding successive layers of dimensional lumber at orthogonal orientations) exhibit biaxial stiffness and excellent diaphragm behavior. In platform-frame configurations, CLT floor plates distribute lateral loads across wall panels efficiently, and the composite action between floor and wall elements adds structural redundancy that pure frame systems cannot provide.

Laminated veneer lumber (LVL), produced by bonding thin wood veneers with the grain aligned parallel to the member length, offers high axial strength relative to weight and dimensional stability under varying moisture conditions. In column and beam applications within hybrid timber-concrete or timber-steel systems, LVL elements perform reliably within the elastic range that seismic design codes require for frequent ground motion intensities.

Rocking Systems and Post-Earthquake Repairability

The structural engineering innovation that has most significantly advanced the case for tall timber construction in seismic zones is the rocking wall system. Unlike conventional shear wall configurations, in which seismic energy is dissipated through distributed inelastic deformation (meaning structural damage), rocking systems are designed to respond to seismic input by rotating about their base, lifting slightly from the foundation and then returning to plumb as the motion subsides.

When implemented in timber, rocking walls offer an additional performance advantage: the damage, if any, is concentrated in replaceable energy-dissipating connectors rather than distributed through the primary structural material. After a significant seismic event, repair work can be targeted precisely, avoiding the costly and difficult process of assessing concealed damage in a concrete or steel shear core.

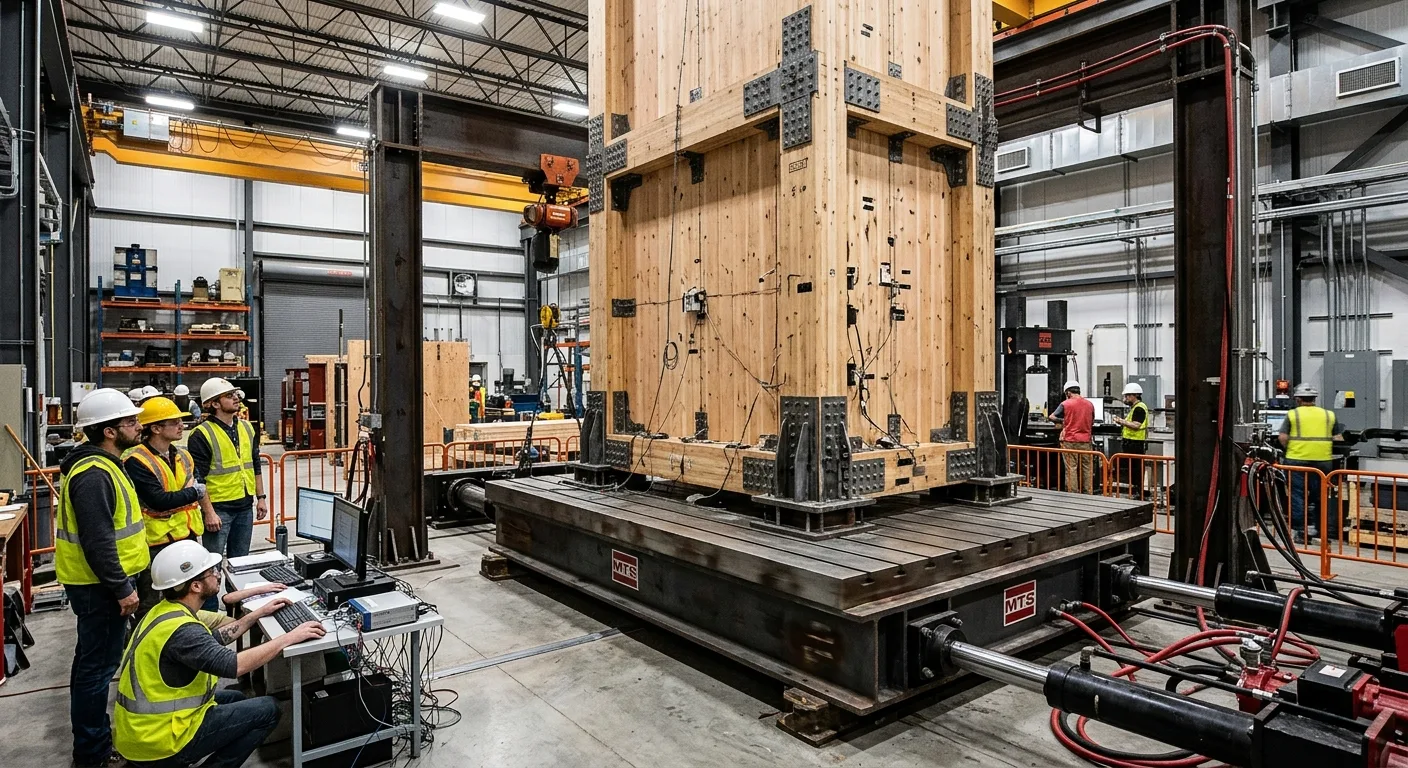

Research conducted at the University of Washington and tested at the shake table facility at the University of California San Diego has demonstrated this performance at ten-story scale: the tallest timber structure ever subjected to large-scale seismic testing as of the time of publication. The results confirmed that a timber rocking wall system designed for a Seattle seismic hazard profile performed within predicted parameters, with damage that was minimal and localized to intended fuse elements.

The Shibaura Island Research Problem

The design research project developed around the Shibaura Island site in Tokyo represents one of the more rigorous attempts to apply these structural insights within a real urban development context. Shibaura Island is a high-density mixed-use precinct on reclaimed land in Tokyo Bay, a challenging site condition that combines soft alluvial soils, high seismic hazard, and the programmatic complexity of a mixed residential and commercial development.

The design research addressed the earthquake-resistant mixed-use tower typology as a specific problem domain: how to achieve the carbon performance and spatial quality benefits of engineered timber construction within a structural system that can satisfy the demanding seismic code requirements of a major Japanese metropolitan area.

The approach drawn from this research lineage combines a hybrid structural strategy (retaining a concrete or steel core where seismic performance and fire resistance requirements are most stringent, while deploying engineered timber for the gravity frame, floor plates, and facade structure) with a rigorous approach to connection detailing that treats each structural junction as a potential seismic fuse.

Fire Performance and Code Evolution

No discussion of timber in tall buildings can proceed without addressing fire performance. Mass timber behaves under fire conditions in a predictably different way from light-frame construction. Large cross-sections char at a stable rate (typically 0.6 to 0.7 millimetres per minute for CLT) while the uncharred wood beneath retains its structural capacity. Fire engineering for mass timber is therefore a calculation exercise with established parameters.

The most recent International Building Code cycle includes provisions for mass timber in buildings up to 18 stories, and hybrid mass timber and concrete buildings have been completed at 25-story height in North America. What remains an active research area is fire behavior at building interfaces: connections between timber structural elements and concrete cores, and between exposed and encapsulated timber surfaces. These details determine whether a timber building performs as modeled, and they benefit precisely from the iterative, research-driven approach to connection design that characterizes the most advanced work in this field.

Folded Structures and Material Efficiency

One structural typology that has emerged from research into solid wood systems deserves particular attention: the folded plate or folded arch configuration. Folded solid wood structures achieve their load-carrying capacity through geometry rather than material quantity. The form itself acts as a structural mechanism, distributing loads along the fold lines and generating shell behavior from planar elements.

The structural efficiency of folded timber systems is significant. By engaging the geometry in carrying load, sections can be reduced relative to conventional beam-and-column configurations, and the resulting form generates spatial quality that flat-slab construction cannot. The folded arch in solid wood extends this principle to three-dimensional form-finding: a structural surface that carries load primarily through compression and in-plane shear, with flexural demand concentrated at the support conditions.

These systems are not primarily seismic-resistant strategies; their primary performance advantage is structural efficiency in gravity and wind load cases. But they represent the broader design research commitment to treating structural form as an architectural resource: choosing forms that do more with less material, that generate spatial and environmental qualities as a direct consequence of their load-carrying mechanism.

Toward an Integrated Resilience Framework

The convergence of seismic engineering research, material science, and design research is producing a more sophisticated understanding of what structural resilience means within ecological architecture. Resilience is not merely the capacity to survive a seismic event without collapse. It includes the capacity for rapid return to occupancy (which points to rocking and fusing structural strategies) and the capacity for a building to contribute to its urban context over a long service period without the material-intensive interventions that conventional construction demands at mid-life.

Timber buildings designed to this integrated standard can be both structurally resilient and materially reversible. The connection details that enable seismic performance can, with foresight in the design process, also enable disassembly and material recovery. Lightweight foundations enabled by reduced structural mass accommodate future building modification more readily than deep concrete equivalents. This convergence requires sustained investment in design research: the iterative development of structural systems and connection typologies through competition entries, speculative projects, and collaborative work that defines the working method of a practice genuinely committed to advancing the field.

The conventional urban grid is a powerful instrument of control. It enables rapid subdivision of land, efficient infrastructure routing, and legible address systems. It also tends to produce a particular spatial quality: uniform block sizes, right-angle intersections, and a visual monotony that corresponds to a real impoverishment of spatial experience at street level. The grid is a solution to a specific set of administrative and infrastructural problems, and it performs those functions well. What it does less well is respond to the particularities of a site: its topography, its movement patterns, its existing social geographies, its ecological conditions.

The Voronocity research program emerged from the recognition that parametric design tools had matured to the point where an alternative urban geometry (one derived from the actual distribution of use, movement, and spatial relationships on a given site) could be generated, tested, and refined within a design research process. The Voronoi diagram, a mathematical structure with origins in geometry and applications across geography, biology, and materials science, provides the computational basis for this alternative.

The Mathematics of Proximity

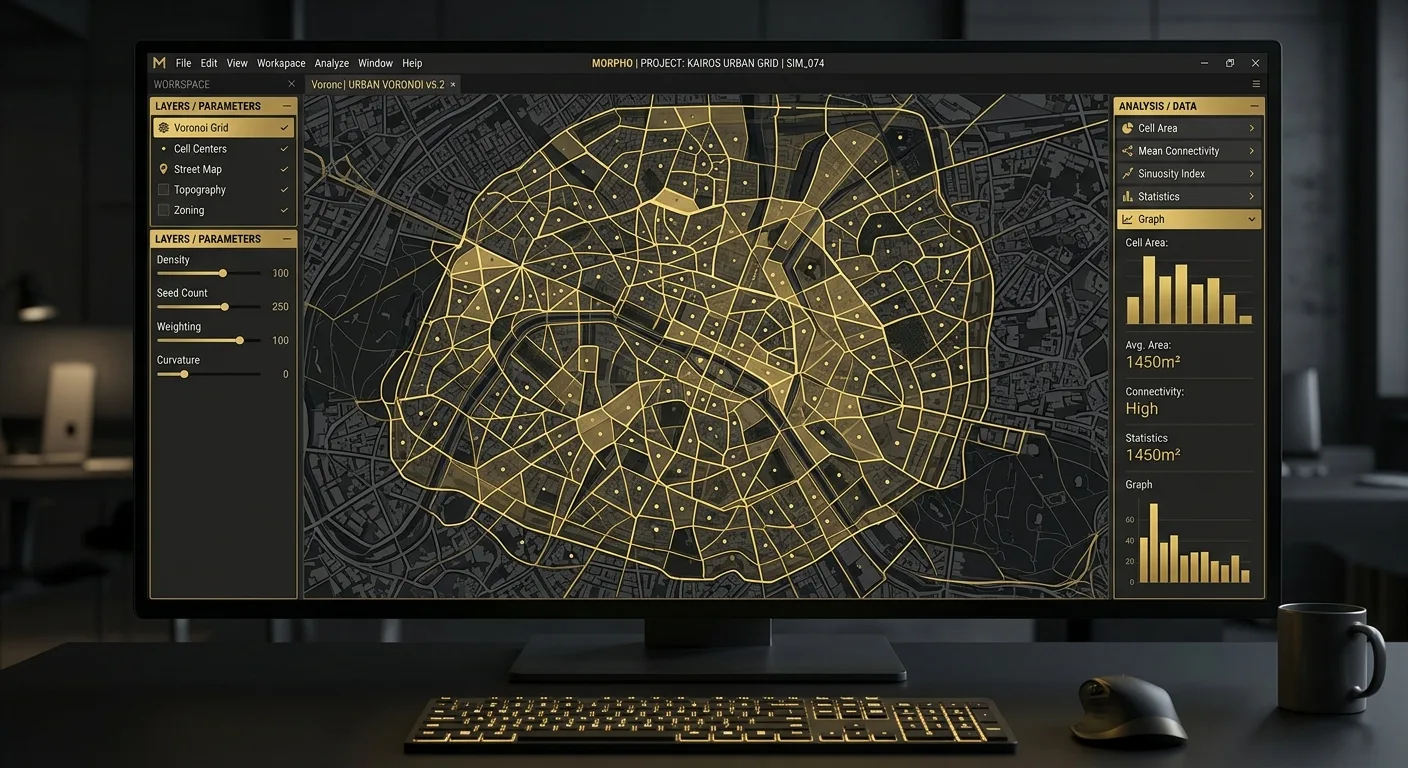

A Voronoi diagram divides a plane into regions according to proximity: given a set of seed points, each region contains all the locations that are closer to its seed point than to any other. The boundaries between regions are equidistant from neighboring seed points. The resulting geometry is organic in appearance (irregular polygons with varying proportions and orientations) but mathematically precise and completely determined by the initial distribution of seed points.

Applied to urban design, this mathematical structure offers a way to derive block geometry from the distribution of existing or proposed attractors: transit nodes, public spaces, employment concentrations, natural features, heritage structures. The Voronoi boundaries that emerge from this distribution define block edges that are spatially efficient in a specific sense: they minimize average travel distance from any point within a block to the nearest attractor. Accessibility is built into the geometry of the urban form itself.

The parametric quality of the system (the fact that the geometry responds algorithmically to changes in seed point distribution) enables designers to explore a wide range of urban configurations systematically. Moving a seed point, adding a new attractor, or adjusting the weighting assigned to different attractor types generates a different urban geometry, and the performance implications of that geometry can be evaluated immediately against accessibility, daylight, wind, and other environmental criteria.

From Plan to Tower: The Voronocity Studies

The Voronocity research program developed through studies at increasing scales of resolution, from the urban plan to the individual tower typology. The plan studies established the methodology: mapping existing conditions, identifying seed points that would generate a Voronoi geometry responsive to those conditions, and testing the resulting block structure against performance metrics.

The cultural centre studies explored how Voronoi geometry could organize a complex multi-programmatic building, treating the spatial boundaries between program elements (performance spaces, galleries, workshops, public circulation) as Voronoi cell boundaries derived from relational distances between functional attractors in the brief. The tower studies (developed across types designated T1 through T4) applied Voronoi logic to the vertical dimension of high-density development. The structural and spatial organization of each floor was derived from a Voronoi subdivision of the floor plate, with cell boundaries corresponding to structural walls, circulation routes, or service zones. The result is a tower section that varies in response to changing programmatic and structural demands across its height, rather than repeating an identical floor plate.

Organic Form and Structural Efficiency

The organic appearance of Voronoi geometry is not merely aesthetic. The mathematical properties of the diagram (in particular, the fact that Voronoi boundaries are always perpendicular to the lines connecting neighboring seed points) produce structural geometries with genuine performance advantages in certain loading conditions.

Shell structures derived from Voronoi tessellations distribute applied loads through compression along the cell edges, avoiding the bending moments that are structurally inefficient and materially expensive. For spatial structures covering large areas (roof systems, long-span floor plates, facade structures), the Voronoi shell provides a path to structural efficiency through geometric optimization. The research into shell structures developed in parallel with the Voronocity program explores precisely this potential: the derivation of structural surface geometry from mathematical optimization rather than compositional intuition.

This connection between mathematical geometry and structural efficiency is one of the deeper themes of the Voronocity research. The best urban form and the best structural form share a common logic: they both emerge from the optimization of relationships (between uses, between loads, between people and resources) rather than from the imposition of a predetermined formal language. The Voronoi diagram is a tool for making those relationships visible and buildable.

Collaborative Design and the Research Collective Model

The Voronocity program could not have been developed through conventional architectural practice. The iterative nature of the research (the systematic variation of seed point distributions, the evaluation of structural and environmental performance across dozens of geometric configurations, the development of connection details for systems derived from the geometry) required a mode of practice organized around research questions rather than client commissions.

This is the model of the design research collective: a group of practitioners maintaining a shared research agenda across projects, competition entries, and speculative studies, accumulating knowledge that no single commission could generate. The global reach of such collectives provides access to the range of structural typologies, climatic conditions, and cultural programs that tests a research agenda’s robustness. The Voronocity studies were exhibited at architecture biennales and published in design research surveys precisely because they demonstrated what this mode of practice produces: work that is simultaneously speculative and technically rigorous.

Parametric Urbanism and the Limits of the Algorithm

A responsible account of parametric urban morphology must engage with its limitations. The quality of Voronoi-derived geometry depends entirely on the quality of the input: the identification of seed points, the weighting of attractors, the definition of the optimization objective. Cities are not optimizable in the way that a structural section is. They are sites of contest, negotiation, and historical accumulation; their spatial qualities are the product of layered decisions made by actors with different interests and different information.

A parametric approach that reduces this complexity to proximity metrics and movement flows risks producing cities that are spatially coherent but socially thin. The Voronocity research program has consistently acknowledged this limitation. The mathematical geometry provides a starting point, not a final answer. The role of the designer (drawing on social sensibility as well as technical intelligence) is to evaluate the parametrically generated geometry against the full range of criteria that make a city livable: the quality of its public spaces, its legibility to inhabitants, and the capacity of its streets to support the informal uses that animate urban life.

The Research Agenda and the Built City

Research programs of this kind face a particular challenge: the distance between speculative studies and built urban form is long, and mechanisms for translating research findings into development decisions are slow. Competition entries and biennale installations generate disciplinary attention but do not by themselves change planning frameworks.

What they do, over time, is change the terms of the conversation. The emergence of Voronoi geometry in practice (in facade structures, roof systems, and urban design proposals) has made visible a formal logic not previously legible within mainstream design culture. The structural studies that developed from Voronoi shell research have influenced the engineering of spatial structures in built projects, and proximity-based urban geometry has entered academic and professional research that is beginning to inform regulatory frameworks.

The contribution of design research to the built city is diffuse and cumulative, mediated through education, publication, competition, and exhibition. The conceptual frameworks that shape how practitioners think about urban form, structural material, and ecological performance are not generated by the market. They are generated by exactly the kind of sustained, collective, research-driven practice that the Voronocity program exemplifies.
